  • YKM12-PTB3204A 3-2172079-2 TE Connectivity

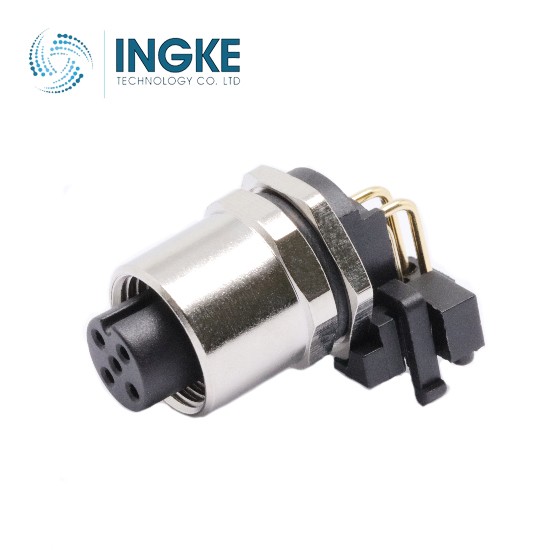

YKM12-PTB3204A 3-2172079-2 TE Connectivity

Product Description:
INGKE YKM12-PTB3204A 100% cross 3-2172079-2 TE Connectivity

Part No.: 3-2172079-2 TE Connectivity
INGKE Part No.: YKM12-PTB3204A
Made in China: INGKE Technology
Description: 3-2172079-2 M12 Circular Connector
Lead Time: 1-2 Weeks

Connector Type: Plug, Female Sockets
Number of Positions: 4
Shell Size - Insert: M12-4
Mounting Type: Panel Mount, Through Hole, Right Angle
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Contact Finish - Mating: Gold
Shielding: Shielded
Current Rating (Amps): 4A
Voltage Rating: 250VAC/DC
Operating Temperature: -40°C ~ 85°C
Contact Material: Copper Alloy
Applications: Automotive, Industrial
Ingress Protection: IP68 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL):1 (Unlimited)
RoHS Compliant and REACH
