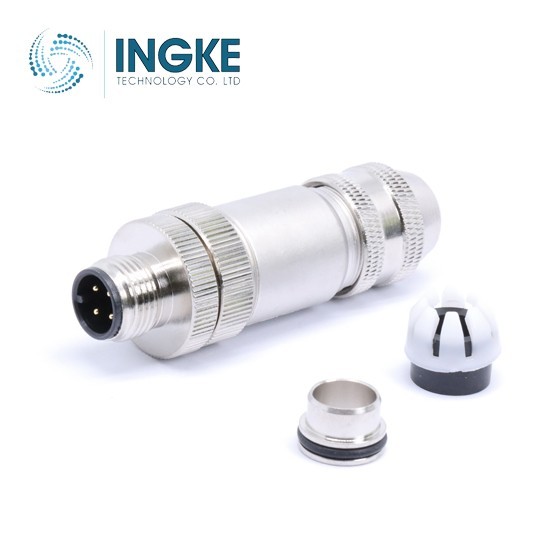

YKM12-KP04A01 3-2271111-2 TE

Product Description:
INGKE YKM12-KP04A01 100% replace 3-2271111-2 TE

Part No.: 3-2271111-2 TE
INGKE Part No.: YKM12-KP04A01
Lead time: 1-2 weeks
MOQ: 1 pcs
Description: 3-2271111-2 TE M12 A Code 4 Pin Circular Connector Plug

Category: Connectors, Interconnects, Circular Connectors, Circular Connector Assemblies
Connector Type: Plug, Male Pins
Number of Positions: 4
Shell Size - Insert: M12-4
Mounting Type: Free Hanging (In-Line)
Mounting Feature: -
Termination: Spring-Cage
Fastening Type: Push-Twist
Orientation: A
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Silver
Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating: UL94 V-0
Features: Backshell
Shielding: Shielded
Current Rating (Amps): 4A
Voltage Rating: 48VAC, 60VDC
Cable Opening: 0.157" ~ 0.315" (4.00mm ~ 8.00mm)
Operating Temperature: -40°C ~ 85°C
Backshell Material, Plating: Zinc Die Cast, Nickel
Contact Material: Copper Tin
Insert Material: Polyamide (PA66), Nylon 6/6
Applications: Data Management
Moisture Sensitivity Level (MSL): 1 (Unlimited)

RoHS Compliant and REACH

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
