  • YKM12-PTB3105B 4-2172063-2 TE Connectivity

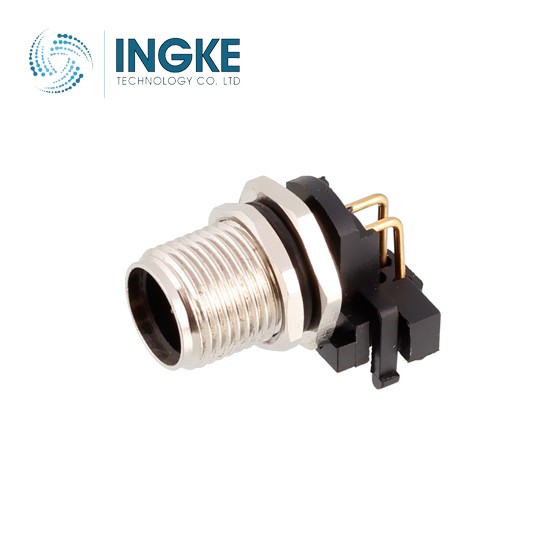

YKM12-PTB3105B 4-2172063-2 TE Connectivity

Product Description:
INGKE YKM12-PTB3105B 100% cross 4-2172063-2 TE Connectivity

Part No.: 4-2172063-2 TE Connectivity
INGKE Part No.: YKM12-PTB3105B
Made in China: INGKE Technology
Description: 4-2172063-2 M12 Circular Connector
Lead Time: 1-2 Weeks

Connector Type: Receptacle, Male Pins
Number of Positions: 5
Shell Size - Insert: M12-5
Mounting Type: Panel Mount, Through Hole, Right Angle
Termination: Solder
Fastening Type: Threaded
Primary Material: Metal
Shell Material: Copper Alloy
Contact Finish - Mating: Gold
Orientation: B
Features: Backshell
Shielding: Shielded
Current Rating (Amps): 4A
Voltage Rating: 125V
Operating Temperature: -40°C ~ 85°C
Insert Material: Polyamide (PA66), Nylon 6/6
Ingress Protection: IP68 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL):1 (Unlimited)
RoHS Compliant and REACH
