  • YKP12-M205BSFM-200 4-2271138-2 TE Connectivity

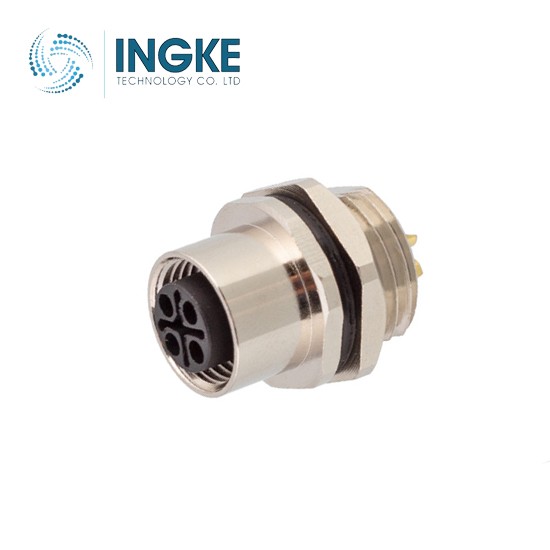

YKP12-M205BSFM-200 4-2271138-2 TE Connectivity

Product Description:
INGKE YKP12-M205BSFM-200 100% cross 4-2271138-2 TE Connectivity

Part No.: 4-2271138-2 TE Connectivity
INGKE Part No.: YKP12-M205BSFM-200
Made in China: INGKE Technology
Description: 4-2271138-2 M12 Circular Connector
Lead Time: 1-2 Weeks

Connector Type: Receptacle, Female Sockets
Number of Positions: 5
Shell Size - Insert: M12-5
Mounting Type: Panel Mount
Termination: Wire Leads
Fastening Type: Threaded
Orientation: B
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Silver
Ingress Protection: IP68 - Dust Tight, Waterproof
Current Rating (Amps): 4A
Voltage Rating: 125VAC/DC
Operating Temperature: -40°C ~ 85°C
Applications: Automotive, Industrial
Moisture Sensitivity Level (MSL):1 (Unlimited)
RoHS Compliant and REACH
