  • YKP12-M205APRP 4-2271143-2 TE

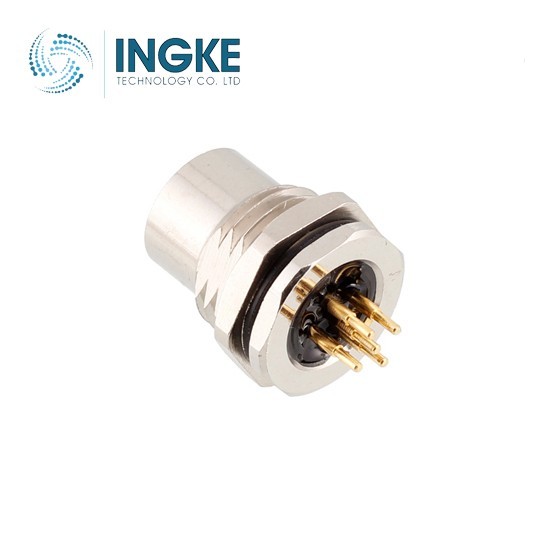

YKP12-M205APRP 4-2271143-2 TE

Product Description:
INGKE YKP12-M205APRP 100% cross 4-2271143-2 TE Connectivity

Part No.: 4-2271143-2 TE Connectivity
INGKE Part No.: YKP12-M205APRP
Made in China: INGKE Technology
Description: 4-2271143-2 M12 Circular Connector
Lead Time: 1-2 Weeks

Connector Type: Receptacle, Female Sockets
Number of Positions: 5
Shell Size - Insert: M12-5
Mounting Type: Panel Mount, Through Hole
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Silver
Ingress Protection: IP68 - Dust Tight, Waterproof
Shielding: Unshielded
Current Rating (Amps): 2A
Voltage Rating: 60VAC/DC
Operating Temperature: -40°C ~ 85°C
Contact Material: Bronze
Contact Finish Thickness - Mating: 19.7µin (0.50µm)
Insert Material: Polyamide (PA), Nylon
Moisture Sensitivity Level (MSL): 1 (Unlimited)

RoHS Compliant and REACH

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
