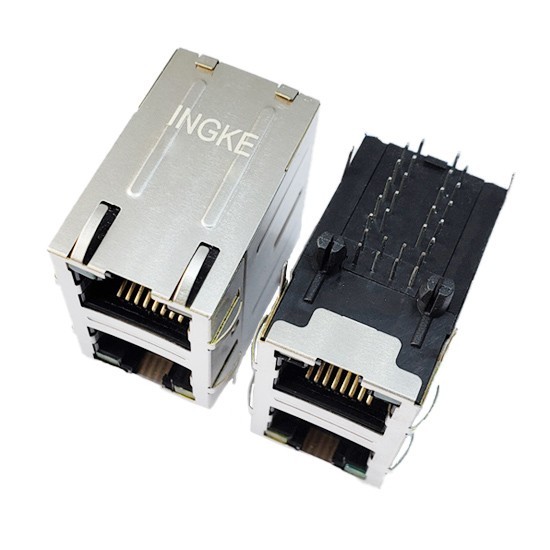

INGKE YKG-017001NL P01-7CJ0-01 Bel

INGKE YKG-017001NL 100% cross P01-7CJ0-01 Bel

Part No.: P01-7CJ0-01 Bel

INGKE Part No.: YKG-017001NL

Made in China: INGKE Technology

Description: P01-7CJ0-01 Bel 1RJ OVER 1 USB GIG W/ LED

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Number of Positions / Contacts per Port: 8P/8C
Shielding: Shielded
Mounting Style: PCB Mount
Mounting Angle: Right Angle
Termination Style: Solder
Current Rating: 1 A
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
LED L / R Color: Green / Yellow, Orange
Tab Direction: Tab Up
Brand: Bel Magnetic Solutions
Contact Material: Phosphor Bronze
Contact Plating: Gold
Flammability Rating: UL 94 V-0
Insulation Resistance: 1 GOhms
Mating Cycles: 1000 Cycle
Number of Contacts: 8 Contact
Number of Ports: 1
Number of Positions: 8 Position
Operating Temperature Range: - 40 C to + 85 C
Product Type: Modular Connectors / Ethernet Connectors
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
