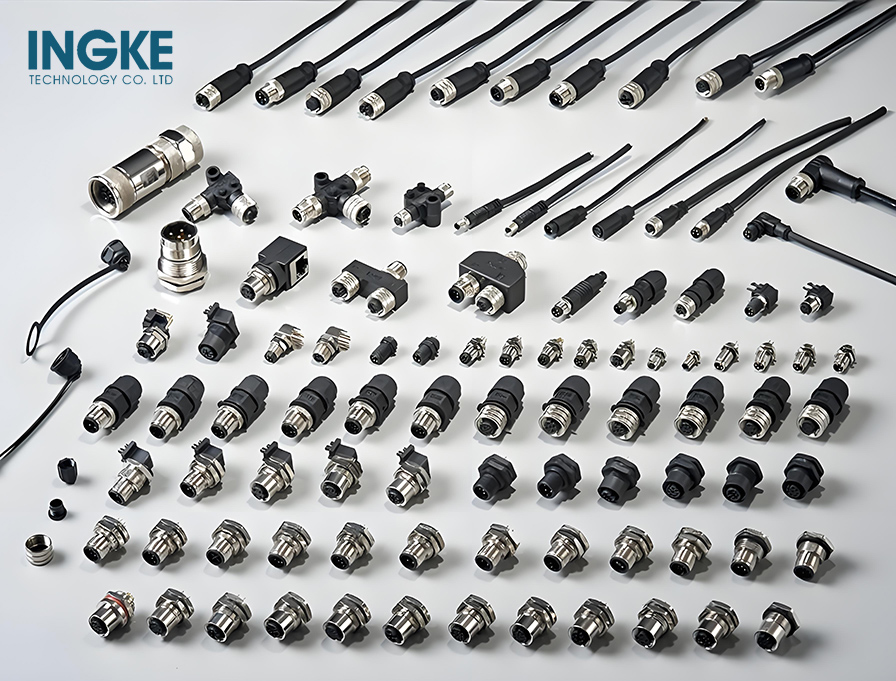

IP67 IP68 Waterproof M5 M8 M12 M23 Circular Connectors and molded cable connector assembly. Panel mounting, Cable, Field attachable types.
In the rapidly evolving landscape of connectivity solutions, M5, M8, M12, and M23 connectors and cable assemblies stand out as the backbone of seamless data transmission. Let's explore the versatility and applications of these connectors, defining the future of connectivity.
M5 connectors, with their compact design, redefine connectivity in space-constrained applications. Ideal for sensors and automation equipment, these miniaturized marvels ensure reliable data transfer in environments where precision matters.
Designed for industrial automation, M8 connectors offer robust and secure connections in manufacturing and control systems. Their rugged build and resistance to harsh conditions make them indispensable in industrial settings where durability is paramount.
M12 connectors, known for their versatility, find applications across industries. From factory automation to process control, their standardized design ensures compatibility, while their robustness thrives in challenging environments, including moisture-prone and harsh industrial settings.
M23 connectors represent the pinnacle of power and data transmission. With a larger form factor, they cater to applications demanding higher currents and voltages. Their reliability and durability make them suitable for demanding environments such as robotics and heavy machinery.
| CHART of types of M connectors and cables | |||||
|---|---|---|---|---|---|
| IEC | Size | Code | Current Rating | Rating | Number of pins / Number of contacts |
| IEC 61076-2-105 | M5 | A code | 1A | 60V | 3 pins, 4 pins |
| IEC 61076-2-104 | M8 | A code | 1.5A | 30V | 5 pins, 6 pins, 7 pins, 8 pins |
| A code | 3A | 50V | 2 pins, 3 pins, 4 pins | ||
| B code | 3A | 30V | 5 pins | ||
| IEC 61076-2-101 | M12 | A code | 4A | 250V | 2 pins, 3 pins, 4 pins |
| 4A | 60V | 5 pins | |||
| 2A | 30V | 8 pins | |||
| 1.5A | 30V | 12 pins, 17 pins | |||
| B code | 4A | 60V | 3 pins, 4 pins, 5 pins | ||
| C code | 4A | 250V | 3 pins, 4 pins | ||
| C code | 2A | 60V | 5 pins | ||
| C code | 2A | 30V | 6 pins | ||
| D code | 4A | 250V | 3 pins, 4 pins | ||
| D code | 4A | 60V | 5 pins | ||
| P code | 4A | 250V | 3 pins, 4 pins | ||
| P code | 4A | 60V | 5 pins | ||
| IEC 61076-2-111 | E code | 16A | 63V | 3 pins, 4 pins, 5 pins | |
| F code | 16A | 63V | 2 pins, 3 pins, 4 pins | ||
| K code | 12A | 630V | 3 pins, 4 pins, 5 pins | ||
| L code | 16A | 63V | 3 pins, 4 pins, 5 pins | ||
| M code | 8A | 630V | 3 pins, 4 pins, 5 pins, 6 pins | ||
| S code | 12A | 630V | 3 pins, 4 pins | ||
| T code | 12A | 63V | 2 pins, 3 pins, 4 pins | ||
| IEC 61076-2-109 | X code | 0.5A | 48V | 8 pins | |
| IEC 61076-2-113 | Y code | Power contact 6A | 50V | 8 pins | |
Sensor Networks, Embedded Systems, Robotics, Medical Devices, Industrial Automation, Industrial Applications, Machine Vision Systems, Automotive Electronics, LED Lighting, Factory Automation, Process Control, Fieldbus Networks, Railway Systems, Heavy Machinery, Aerospace Technologies, Renewable Energy, Marine Electronics, Agricultural Electronics, Fisheries Electronics, Data Centers, Telecommunications Towers, Electric Vehicle Charging Stations and so on.
