INGKE YKG-281008NL 0857281008 Molex

INGKE YKG-281008NL 100% cross 0857281008 Molex

Part No.: 0857281008 Molex

INGKE Part No.: YKG-281008NL

Made in China: INGKE Technology

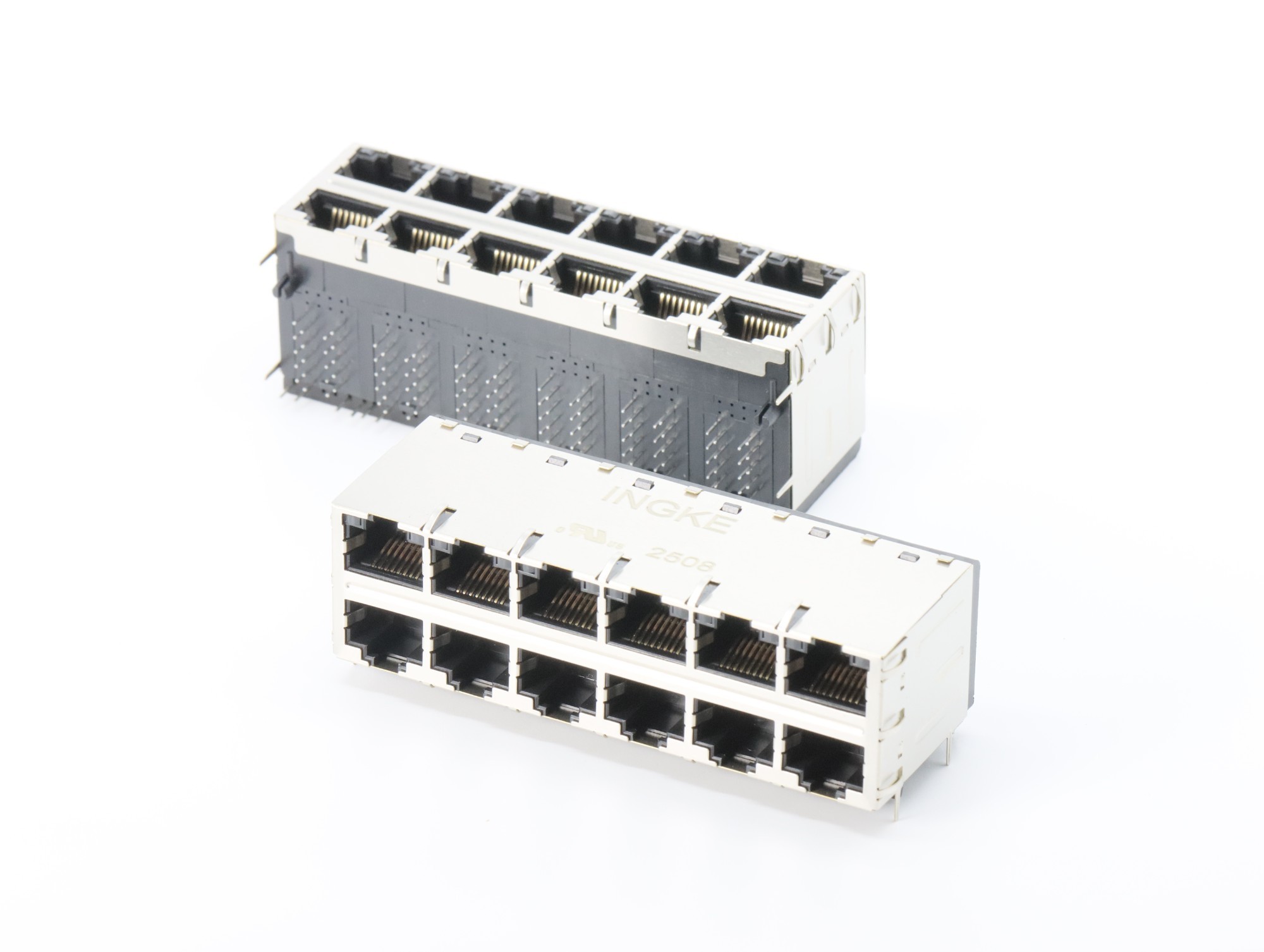

Description: 0857281008 Molex 12 Port RJ45 Through Hole 1G Base-T, AutoMDIX

MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type:RJ45
Number of Ports:12
Number of Rows:2

Applications:1G Base-T, AutoMDIX

Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder

Height Above Board:1.002" (25.46mm)
Shielding:Shielded, EMI Finger
Features:Board Guide
LED Color:Green, Yellow - Green, Yellow
Tab Direction:Up and Down
Contact Material:Copper Alloy
Contact Finish:Gold
Shield Material:Brass

Contact Finish Thickness:30.0µin (0.76µm)
Housing Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Operating Temperature:0°C ~ 70°C
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
