INGKE YKG-4488741NL RJE4W48874A1 Amphenol

INGKE YKG-4488741NL 100% cross RJE4W48874A1 Amphenol

Part No.: RJE4W48874A1 Amphenol

INGKE Part No.: YKG-4488741NL

Made in China: INGKE Technology

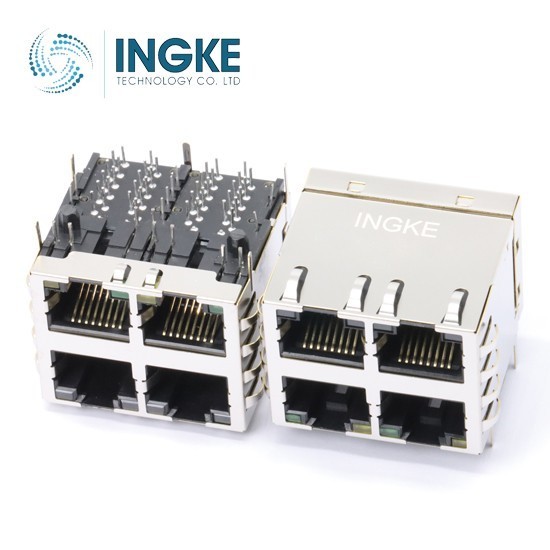

Description: RJE4W48874A1 Amphenol 2X2 Ports RJ45 Connector

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 2x2
Number of Positions / Contacts per Port: 8P8C
Shielding: Shielded, EMI Fingers
Performance Category: Cat 5e
Mounting Style: Through Hole
Mounting Angle: Right Angle
Termination Style: Solder
Current Rating: 1.25 A
Voltage Rating: 125 VAC
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Color: Black
LED L / R Color: Red, Green / Red, Green
Tab Direction: Tab Up and Tab Down
Application: 1000 Base-T
Brand: Amphenol Commercial Products
Contact Material: Phosphor Bronze
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: CN
Flammability Rating: UL 94 V-0
Insulation Resistance: 500 MOhms
Mating Cycles: 750 Cycle
Product Type: Modular Connectors / Ethernet Connectors

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
