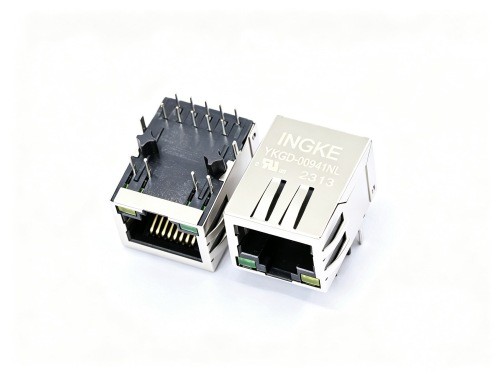

INGKE YKGD-00941NL CRJ009-ML4-TH Same Sky

INGKE YKGD-00941NL 100% cross CRJ009-ML4-TH Same Sky

Part No.: CRJ009-ML4-TH Same Sky

INGKE Part No.: YKGD-00941NL

Made in China: INGKE Technology

Description: CRJ009-ML4-TH Same Sky 1 Port RJ45 Through Hole 10/100/1000 Base-T

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Up

Number of Ports:1
Number of Rows:1

Applications:10/100/1000 Base-T
LED Color:Yellow - Green

Number of Cores per Jack:8
Shielding:Shielded, EMI Finger

Height Above Board:0.535" (13.60mm)

Features:Board Lock
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Operating Temperature:0°C ~ 70°C

Contact Material:Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:50.0µin (1.27µm)
Shield Material:Brass
Housing Material:Polyamide (PA66), Nylon 6/6

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
