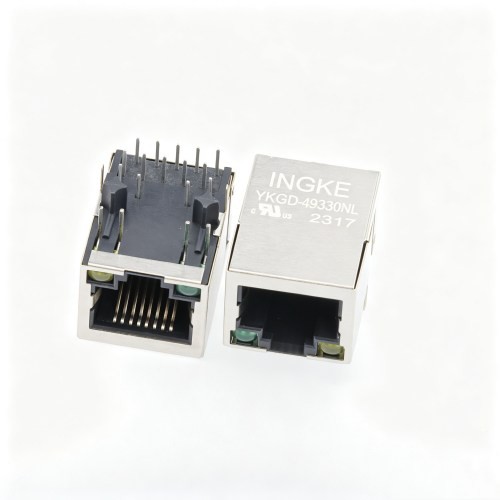

INGKE YKGD-49330NL TMJG4933HENL Taoglas

INGKE YKGD-49330NL 100% cross TMJG4933HENL Taoglas

Part No.: TMJG4933HENL Taoglas

INGKE Part No.: YKGD-49330NL

Made in China: INGKE Technology

Description: TMJG4933HENL Taoglas 1 Port RJ45 Through Hole 1G Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Down

Number of Ports:1
Number of Rows:1

Applications:1G Base-T, AutoMDIX
LED Color:Green, Yellow

Number of Cores per Jack:8
Shielding:Unshielded

Height Above Board:0.524" (13.30mm)

Features:Board Guide
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Operating Temperature:-40°C ~ 85°C

Contact Material:Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:6.00µin (0.152µm)
Shield Material:Stainless Steel
Housing Material:Polybutylene Terephthalate (PBT), Glass Filled

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
