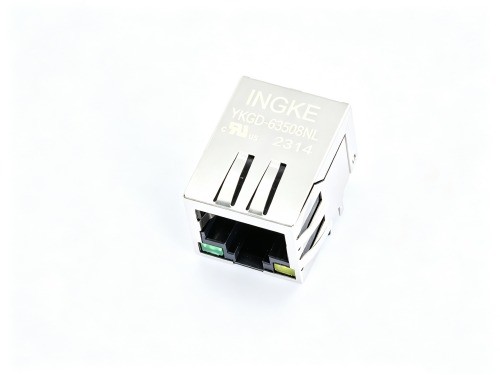

INGKE YKGD-63508NL 93626-3508 Molex

INGKE YKGD-63508NL 100% cross 93626-3508 Molex

Part No.: 93626-3508 Molex

INGKE Part No.: YKGD-63508NL

Made in China: INGKE Technology

Description: 93626-3508 Molex 1 Port RJ45 Through Hole 10/100/1000 Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Number of Ports:1
Number of Rows:1

Applications:10/100/1000 Base-T, AutoMDIX
Tab Direction:Up
Features:Board Guide
LED Color:Green, Yellow - Green, Yellow

Orientation:90° Angle (Right)
Termination:Solder
Mounting Type:Through Hole

Shielding:Shielded, EMI Finger

Temperature:0°C ~ 70°C

Number of Cores per Jack:8

Contact Material: Phosphor Bronze

Contact Finish:Gold

Contact Finish Thickness:2.00µin (0.051µm)

Height Above Board:0.555" (14.10mm)

Housing Material: Liquid Crystal Polymer (LCP)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
