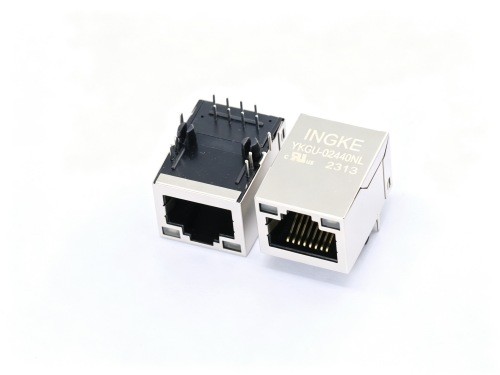

INGKE YKGU-02440NL TMJUTGW0021102440 Taoglas

INGKE YKGU-02440NL 100% cross TMJUTGW0021102440 Taoglas

Part No.: TMJUTGW0021102440 Taoglas

INGKE Part No.: YKGU-02440NL

Made in China: INGKE Technology

Description: TMJUTGW0021102440 Taoglas 1 Port RJ45 Through Hole 1G Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Up

Number of Ports:1
Number of Rows:1

Applications:1G Base-T, AutoMDIX
LED Color:Green, Yellow

Number of Cores per Jack:4
Shielding:Shielded, EMI Finger

Height Above Board:0.535" (13.60mm)

Features:Board Lock
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Operating Temperature:-40°C ~ 85°C

Contact Material:Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:30.0µin (0.76µm)
Shield Material:Brass
Housing Material:Polybutylene Terephthalate (PBT)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
