INGKE YKGU-16459NL TMJG16459BDNL Taoglas

INGKE YKGU-16459NL 100% cross TMJG16459BDNL Taoglas

Part No.: TMJG16459BDNLTaoglas

INGKE Part No.: YKGU-16459NL

Made in China: INGKE Technology

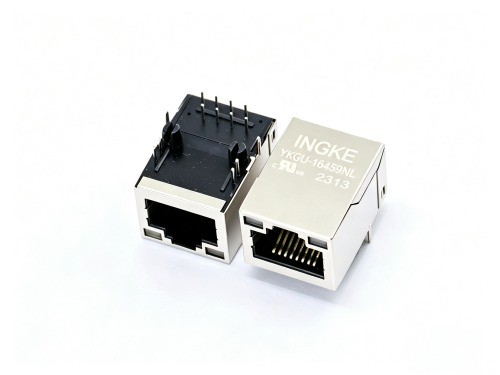

Description: TMJG16459BDNL Taoglas 1 Port RJ45 Through Hole 1G Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Up

Number of Ports:1
Number of Rows:1
Applications:1G Base-T, AutoMDIX
LED Color:Yellow - Green
Shielding:Shielded
Features:Board Lock
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder

Height Above Board:0.524" (13.30mm)

Number of Cores per Jack:8
Operating Temperature:-40°C ~ 85°C
Contact Material: Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:6.00µin (0.152µm)

Housing Material:Polybutylene Terephthalate (PBT), Glass Filled

Shield Material:Stainless Steel

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
