INGKE YKGU-37867NL TMJG37867A5NL Taoglas

INGKE YKGU-37867NL 100% cross TMJG37867A5NL Taoglas

Part No.: TMJG37867A5NL Taoglas

INGKE Part No.: YKGU-37867NL

Made in China: INGKE Technology

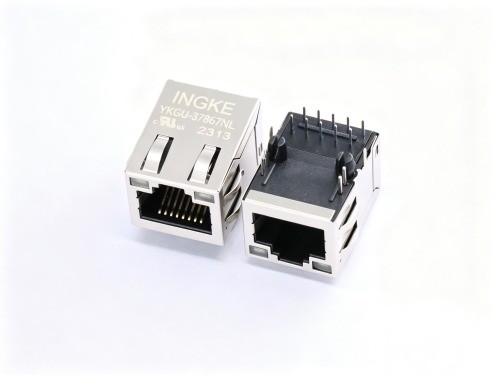

Description: TMJG37867A5NL Taoglas 1 Port RJ45 Through Hole 1G Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Up

Number of Ports:1
Number of Rows:1

Applications:1G Base-T, AutoMDIX
LED Color:Green, Yellow - Green, Yellow

Number of Cores per Jack:8
Shielding:Shielded, EMI Finger

Height Above Board:0.530" (13.45mm)

Features:Board Lock
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Operating Temperature:-40°C ~ 85°C

Contact Material:Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:6.00µin (0.152µm)
Shield Material:Stainless Steel
Housing Material:Polybutylene Terephthalate (PBT), Glass Filled

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
