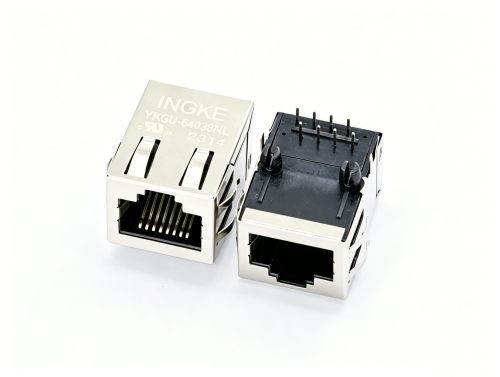

INGKE YKGU-64038NL 1664038 Phoenix

INGKE YKGU-64038NL 100% cross 1664038 Phoenix

Part No.: 1664038 Phoenix

INGKE Part No.: YKGU-64038NL

Made in China: INGKE Technology

Description: 1664038 Phoenix 1 Port RJ45 Through Hole 1G Base-T, AutoMDIX

MOQ: 1PCS
Lead Time: 1-2 Weeks

Part Status:Active
Connector Type:RJ45
Number of Ports:1
Number of Rows:1
Applications:1G Base-T, AutoMDIX
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Height Above Board:0.543" (13.80mm)
LED Color:Does Not Contain LED
Number of Cores per Jack:8
Shielding:Shielded, EMI Finger
Features:Board Guide
Tab Direction:Up
Contact Material:Phosphor Bronze
Contact Finish:Gold
Operating Temperature:-40°C ~ 85°C
Contact Finish Thickness:30.0µin (0.76µm)
Shield Material:Copper Alloy
Housing Material:Liquid Crystal Polymer (LCP)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
