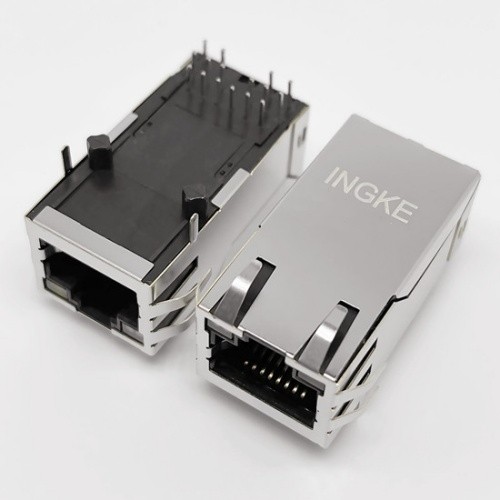

INGKE YKGU-82623NL L826-1X1T-23-F Bel

INGKE YKGU-82623NL 100% cross L826-1X1T-23-F Bel

Part No.: L826-1X1T-23-F Bel

INGKE Part No.: YKGU-82623NL

Made in China: INGKE Technology

Description: 0821-1X1T-43-F 1 Port RJ45 Through Hole 100 Base-T, AutoMDIX

MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100/1000 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.489" (12.42mm)
LED Color: Green, Orange - Yellow
Number of Cores per Jack: 12
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT)
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
