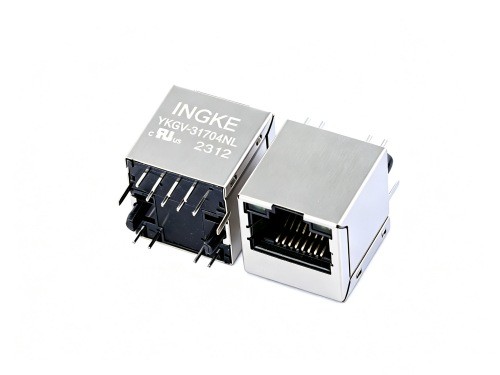

INGKE YKGV-31704NL TMJY317YGDZ4NL Taoglas

INGKE YKGV-31704NL 100% cross TMJY317YGDZ4NL Taoglas

Part No.: TMJY317YGDZ4NL Taoglas

INGKE Part No.: YKGV-31704NL

Made in China: INGKE Technology

Description: TMJY317YGDZ4NL Taoglas 1 Port RJ45 Through Hole 1G Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:User Selectable

Number of Ports:1
Number of Rows:1

Applications:1G Base-T, AutoMDIX
LED Color:Green - Yellow

Number of Cores per Jack:8
Shielding:Shielded

Height Above Board:0.665" (16.90mm)

Features:Board Guide
Mounting Type:Through Hole
Orientation:Vertical
Termination:Solder
Operating Temperature:-40°C ~ 85°C

Contact Material:Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:30.0µin (0.76µm)
Shield Material:Brass
Housing Material:Polyamide (PA66), Nylon 6/6

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
