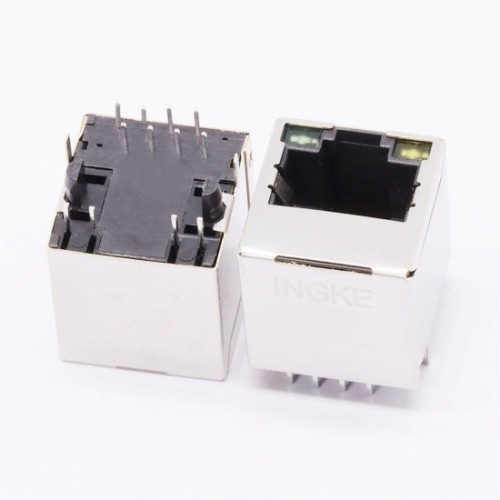

INGKE YKGV-81100NL V8BR-1AX1-GH Bel

INGKE YKGV-81100NL 100% cross V8BR-1AX1-GH Bel

Part No.: V8BR-1AX1-GH Bel

INGKE Part No.: YKGV-81100NL

Made in China: INGKE Technology

Description: 0821-1X1T-43-F 1 Port 10/100/1000 Base-T, AutoMDIX, PoE

MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100/1000 Base-T, AutoMDIX, Power over Ethernet (PoE)
Mounting Type: Panel Mount, Through Hole
Orientation: Vertical
Termination: Solder
Height Above Board: 0.670" (17.02mm)
LED Color: Green - Yellow
Number of Cores per Jack: 4
Shielding: Unshielded
Features: Board Guide
Tab Direction: User Selectable
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Stainless Steel
Housing Material: Polybutylene Terephthalate (PBT)
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
