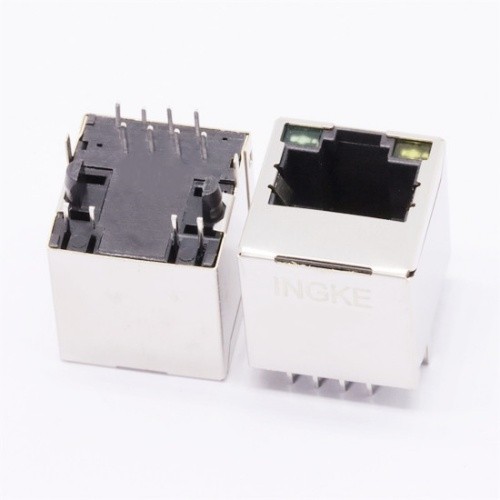

INGKE YKGV-90111NL V890-1RX1-A1 Bel

INGKE YKGV-90111NL 100% cross V890-1RX1-A1 Bel

Part No.: V890-1RX1-A1 Bel

INGKE Part No.: YKGV-90111NL

Made in China: INGKE Technology

Description: V890-1RX1-A1 Bel 1 Port 10/100/1000 Base-T, AutoMDIX

MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100/1000 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: Vertical
Termination: Solder
Height Above Board: 0.652" (16.55mm)
LED Color: Yellow, Green - Green
Number of Cores per Jack: 8
Shielding: Shielded
Features: Board Guide
Tab Direction: User Selectable
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT)
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
