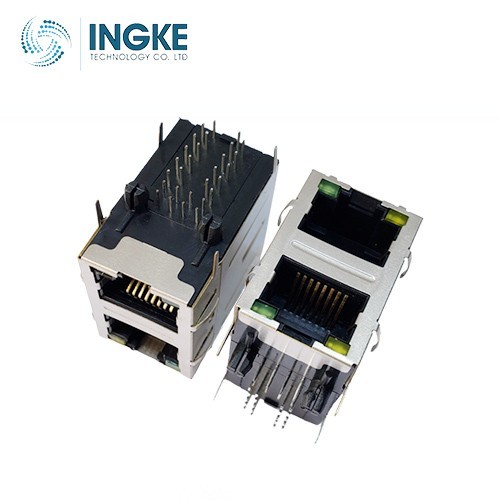

INGKE YKJ-184814NL 1840814-2 TRP

INGKE YKJ-184814NL 100% cross 1840814-2 TRP

Part No.: 1840814-2 TRP

INGKE Part No.: YKJ-184814NL

Made in China: INGKE Technology

Description: 1840814-2 TRP 2 Ports 10/100 Base-T

MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 2
Number of Rows: 2
Applications: 10/100 Base-TX, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 1.004" (25.50mm)
LED Color: Green, Green - Green, Green
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Guide, Decoupling Capacitance
Tab Direction: Up and Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Brass
Housing Material: Thermoplastic
Categories: Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
