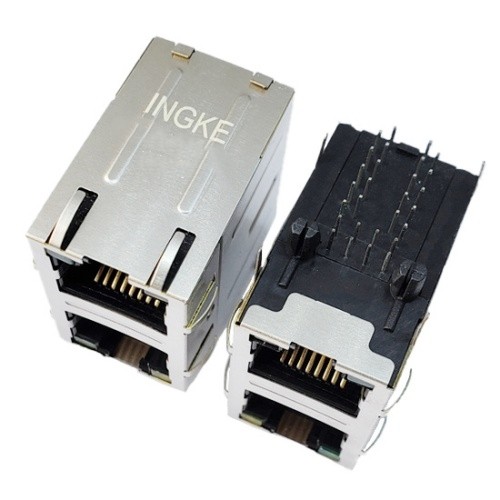

INGKE YKJ-53800NL RJSAE-5380-02 Amphenol

INGKE YKJ-53800NL 100% cross RJSAE-5380-02 Amphenol

Part No.: RJSAE-5380-02 Amphenol

INGKE Part No.: YKJ-53800NL

Made in China: INGKE Technology

Description: RJSAE-5380-02 Amphenol Ethernet Connectors MODULAR JACK

MOQ: 1PCS
Lead Time: 1-2 Weeks

Configuration: 2x1
Number of Positions / Contacts per Port: 8P8C
Shielding: Shielded
Performance Category: Cat 5
Mounting Style: PCB Mount
Mounting Angle: Right Angle
Termination Style: SMD/SMT
IP Rating: IP20
Current Rating: 1.5 A
Voltage Rating: 125 VAC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 85 C
Color: Black
Tab Direction: Tab Up and Tab Down
Application: 10/100 Base-T
Contact Material: Phosphor Bronze
Contact Plating: Gold
Flammability Rating: UL 94 V-0
Insulation Resistance: 500 MOhms
Mating Cycles: 750 Cycles
Product Type: Modular Connectors / Ethernet Connectors
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
