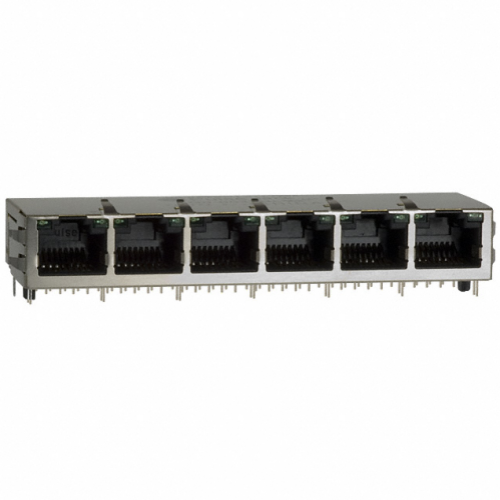

INGKE YKJ-5558501NL 5558501-1 TE

INGKE YKJ-5558501NL 100% cross 5558501-1 TE

Part No.: 5558501-1 TE

INGKE Part No.: YKJ-5558501NL

Made in China: INGKE Technology

Description: 5558501-1 TE 6P,8 POS,CAT 5

MOQ: 1PCS
Lead Time: 1-2 Weeks

USOC Codes: RJ45
Configuration: 1x6
Number of Positions / Contacts per Port: 8P8C
Shielding: Unshielded
Performance Category: Cat 5
Mounting Style: Through Hole
Mounting Angle: Right Angle
Termination Style: Solder
Current Rating: 200 mA, 1.5 A
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Color: Black
Tab Direction: Tab Down
Application: 10/100 Base-T
Contact Material: Phosphor Bronze
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: CN
Flammability Rating: UL 94 V-0
Number of Ports: 6 Port
Number of Positions: 8 Position
Product Type: Modular Connectors / Ethernet Connectors
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
