INGKE YKJ-594881NL RJE594886111 Amphenol

INGKE YKJ-594881NL 100% cross RJE594886111 Amphenol

Part No.: RJE594886111 Amphenol

INGKE Part No.: YKJ-594881NL

Made in China: INGKE Technology

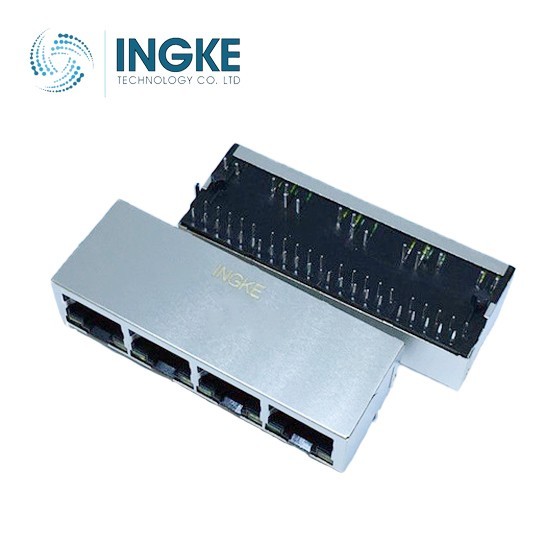

Description: RJE594886111 Amphenol Standard Profile CAT6 RJ45 - 4 Port with Green LED

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 1x4
Number of Positions / Contacts per Port: 8P8C
Shielding: Shielded
Performance Category: Cat 6
Mounting Style: PCB Mount
Mounting Angle: Right Angle
Termination Style: Solder
Current Rating: 1.25 A
Voltage Rating: 125 VAC
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Color: Black
LED L / R Color: Green / Yellow
Tab Direction: Tab Up
Contact Material: Phosphor Bronze
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Dielectric Strength: 1 kVAC
Flammability Rating: UL 94 V-0
Insulation Resistance: 500 MOhms
Mounting Direction: Right Angle
Operating Temperature Range: - 40 C to + 85 C
Product Type: Modular Connectors / Ethernet Connectors

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
