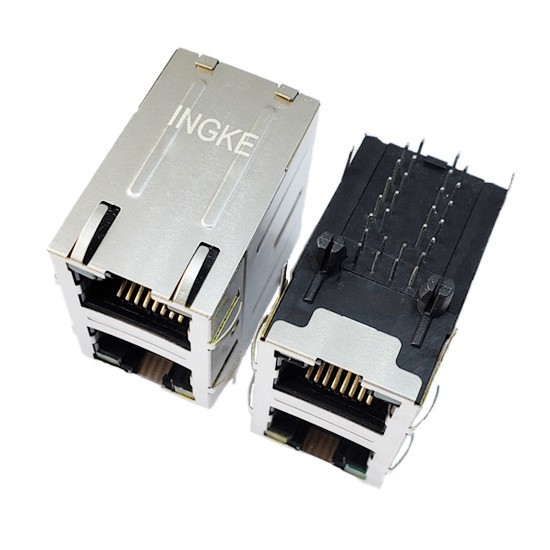

INGKE YKJ-6368011NL 6368011-5 TE

INGKE YKJ-6368011NL 100% cross 6368011-5 TE

Part No.: 6368011-5 TE

INGKE Part No.: YKJ-6368011NL

Made in China: INGKE Technology

Description: 6368011-5 TE 2X1,SHLD Y/G/Y/G LEDS

MOQ: 1PCS
Lead Time: 1-2 Weeks

USOC Codes: RJ45
Configuration: 2x1
Number of Positions / Contacts per Port: 8P8C
Shielding: Shielded, EMI Fingers
Performance Category: Cat 5
Mounting Style: Through Hole
Mounting Angle: Right Angle
Termination Style: Solder
Current Rating: 200 mA, 1.5 A
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Color: Black
LED L / R Color: Yellow / Green
Tab Direction: Tab Up and Tab Down
Application: 10/100 Base-T
Brand: TE Connectivity / AMP
Contact Material: Phosphor Bronze
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: CN
Flammability Rating: UL 94 V-0
Number of Ports: 2 Port
Number of Positions: 8 Position
Product Type: Modular Connectors / Ethernet Connectors
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
