INGKE YKJ-7248141NL RJE7248814B1 Amphenol

INGKE YKJ-7248141NL 100% cross RJE7248814B1 Amphenol

Part No.: RJE7248814B1 Amphenol

INGKE Part No.: YKJ-7248141NL

Made in China: INGKE Technology

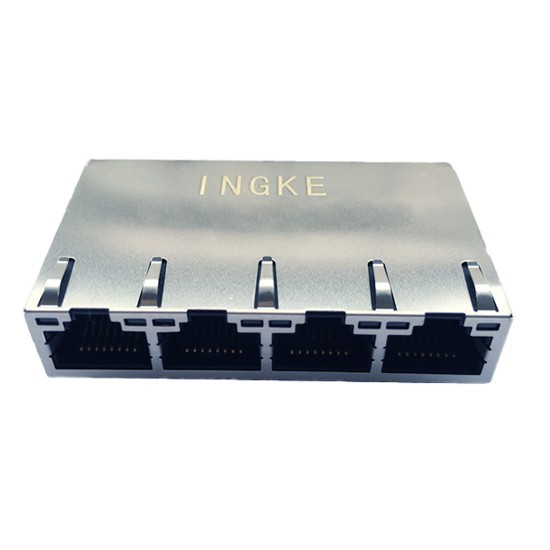

Description: RJE7248814B1 Amphenol Cat 5e 4 Port 8P8C Shielded w/LED's

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 1x4
Number of Positions / Contacts per Port: 8P8C
Shielding: Shielded, EMI Fingers
Performance Category: Cat 5e
Mounting Style: Through Hole
Mounting Angle: Right Angle
Termination Style: Solder
IP Rating: IP20
Current Rating: 1.25 A
Voltage Rating: 125 VAC
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Color: Black
LED L / R Color: Red, Green / Red, Green
Tab Direction: Tab Up
Application: 1G/2.5G Base-T
Brand: Amphenol Commercial Products
Contact Material: Phosphor Bronze
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: CN
Flammability Rating: UL 94 V-0
Insulation Resistance: 500 MOhms
Number of Contacts: 8 Contact
Number of Ports: 4 Port
Number of Positions: 8 Position
Product Type: Modular Connectors / Ethernet Connectors
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
