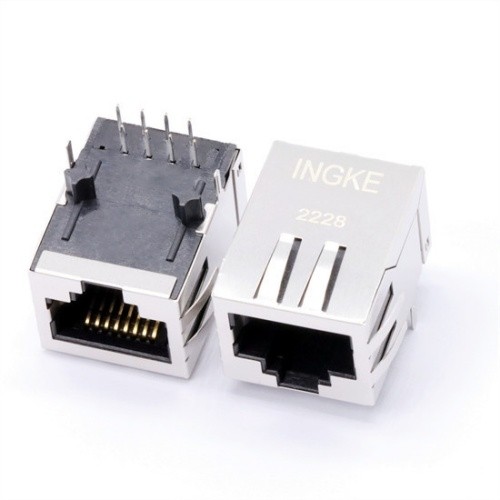

INGKE YKJD-51881417NL RJE05-188-1417H TE

INGKE YKJD-51881417NL 100% cross RJE05-188-1417H TE

Part No.: RJE05-188-1417H TE

INGKE Part No.: YKJD-51881417NL

Made in China: INGKE Technology

Description: RJE05-188-1417H TE 1X1 Port RJ45 Connector

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 1x1
Number of Positions / Contacts per Port: 8P8C
Shielding: Shielded
Mounting Style: Through Hole
Mounting Angle: Right Angle
Termination Style: Solder
Current Rating: 1.5 A
Voltage Rating: 125 VAC
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Color: Black
Tab Direction: Tab Down
Contact Material: Phosphor Bronze
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: CN
Flammability Rating: UL 94 V-0
Insulation Resistance: 500 MOhms
Mating Cycles: 750 Cycles
Pitch: 2.54 mm
Product Type: Modular Connectors / Ethernet Connectors

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
