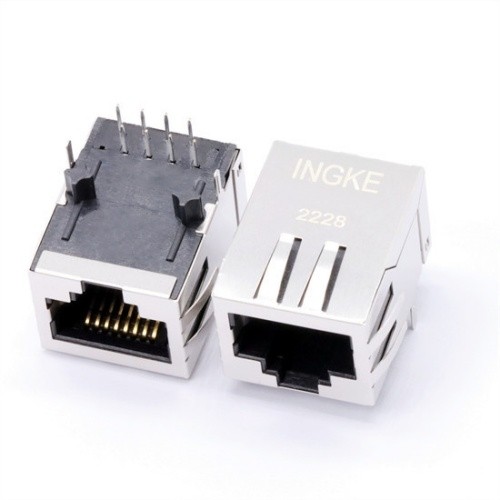

INGKE YKJD-54064291NL 5406429-1 TE

INGKE YKJD-54064291NL 100% cross 5406429-1 TE

Part No.: 5406429-1 TE

INGKE Part No.: YKJD-54064291NL

Made in China: INGKE Technology

Description: SS-650810-A-NF-50 TE Ethernet Connectors MJ,LPF,R/A,8P,SHLD PNL STP,HTN

MOQ: 1PCS
Lead Time: 1-2 Weeks

USOC Codes: RJ45
Configuration: 1x1
Number of Positions / Contacts per Port: 8P8C
Shielding: Shielded
Performance Category: Cat 3
Mounting Style: Through Hole
Mounting Angle: Right Angle
Termination Style: Solder
Current Rating: 200 mA, 1.5 A
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Color: Black
Tab Direction: Tab Down
Application: 10 Base-T
Contact Material: Phosphor Bronze
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Flammability Rating: UL 94 V-0
Product Type: Modular Connectors / Ethernet Connectors

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
