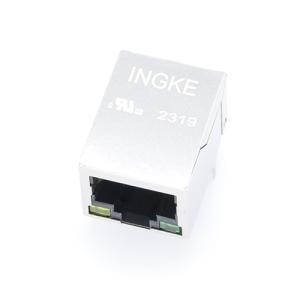

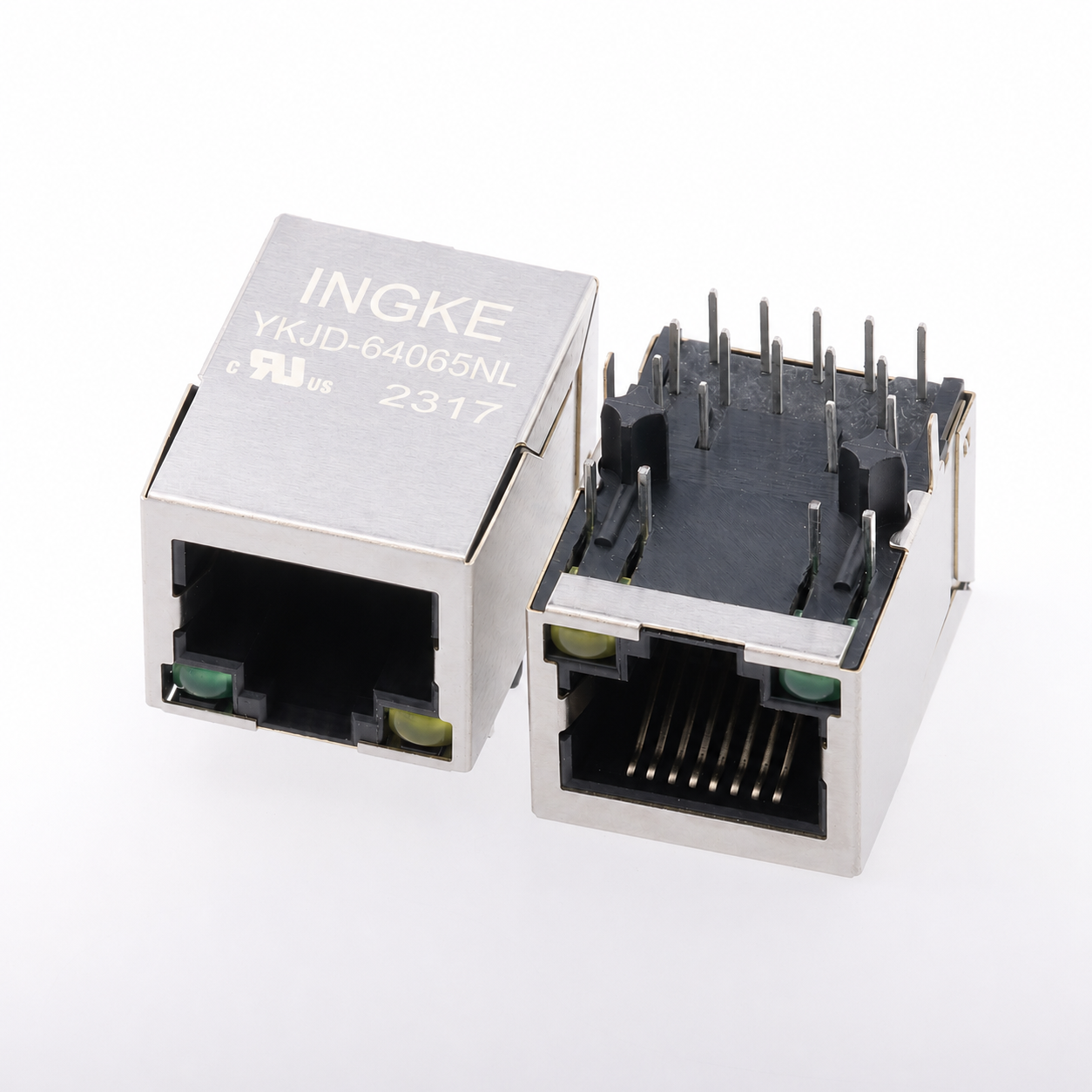

INGKE YKJD-64065NL 1664065 Phoenix

INGKE YKJD-64065NL 100% cross 1664065 Phoenix

Part No.: 1664065 Phoenix

INGKE Part No.: YKJD-64065NL

Made in China: INGKE Technology

Description: 1664065 Phoenix 1 Port RJ45 Through Hole 10/100 Base-TX, AutoMDIX

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 1x1
Shielding: Shielding
Number of Cores per Jack:4
Termination Style: Through Hole

Orientation:90° Angle (Right)
Height Above Board:0.537" (13.64mm)
Termination:Solder
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C

LED L / R Color: Green / Yellow

Applications:10/100 Base-TX, AutoMDIX
Contact Material: Phosphor Bronze
Contact Plating: Gold

Tab Direction:Down
Number of Ports: 1 Port
Number of Rows: 1 Position
Housing Material:Liquid Crystal Polymer (LCP)
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
