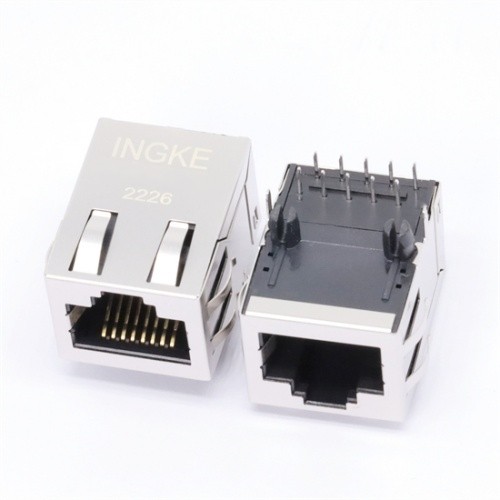

INGKE YKJD-81136NL S811-1X1T-36-F Bel

INGKE YKJD-81136NL 100% cross S811-1X1T-36-F Bel

Part No.: S811-1X1T-36-F Bel

INGKE Part No.: YKJD-81136NL

Made in China: INGKE Technology

Description: S811-1X1T-36-F Bel 1 Port 10/100 Base-T, AutoMDIX

MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100 Base-T, AutoMDIX
Mounting Type: Surface Mount
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.502" (12.75mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Guide, Solder Retention
Tab Direction: Down
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Copper Alloy
Housing Material: Phenolic; Polyamide (PA), Nylon
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
