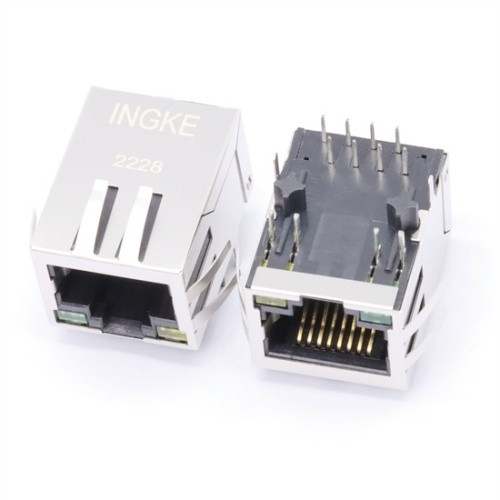

INGKE YKJD-83411NL L834-1G1T-91 Bel

INGKE YKJD-83411NL 100% cross L834-1G1T-91 Bel

Part No.: L834-1G1T-91 Bel

INGKE Part No.: YKJD-83411NL

Made in China: INGKE Technology

Description: L834-1G1T-91 Bel 1 Port 10/100 Base-T, AutoMDIX

MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100 Base-T, AutoMDIX
Mounting Type: Board Edge, Cutout; Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.448" (11.38mm)
LED Color: Green - Green
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Lock
Tab Direction: Down
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT)
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
