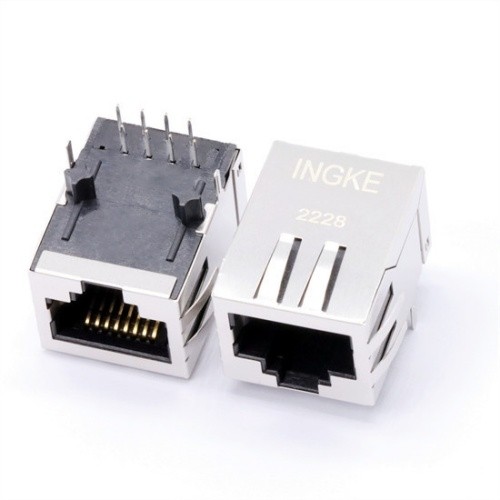

INGKE YKJD-85561NL 2-5338556-1 TE

INGKE YKJD-85561NL 100% cross 2-5338556-1 TE

Part No.: 2-5338556-1 TE

INGKE Part No.: YKJD-85561NL

Made in China: INGKE Technology

Description: 2-5338556-1 TE 8/8 MOD JACK ASSY SE 8 POS 1X1 R/A RJ45

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 1x1
Number of Positions / Contacts per Port: 8P8C
Shielding: Shielded, EMI Fingers
Performance Category: Cat 3
Mounting Style: Through Hole
Mounting Angle: Right Angle
Termination Style: Solder
Current Rating: 1.5 A
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 70 C
Color: Black
Tab Direction: Tab Down
Application: 10 Base-T
Contact Material: Phosphor Bronze
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Flammability Rating: UL 94 V-0
Number of Ports: 1 Port
Number of Positions: 8 Position
Product Type: Modular Connectors / Ethernet Connectors

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
