INGKE YKJD-9000011NL SS-90000-011 Bel

INGKE YKJD-9000011NL 100% cross SS-90000-011 Bel

Part No.: SS-90000-011 Bel

INGKE Part No.: YKJD-9000011NL

Made in China: INGKE Technology

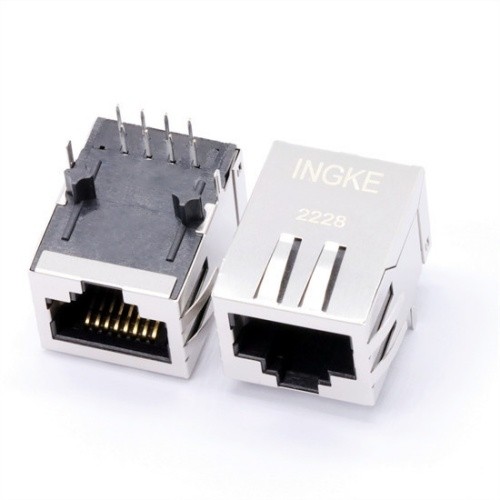

Description: SS-90000-011 Bel RJ45 8P8C Essential Jack Shielded Horizontal 15u

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 1x1
Number of Positions / Contacts per Port: 8P8C
Shielding: Shielded
Mounting Style: Through Hole
Mounting Angle: Right Angle
Termination Style: Solder
Current Rating: 1.5 A
Voltage Rating: 150 VAC
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Color: Silver
Tab Direction: Tab Down
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: CN
Dielectric Strength: 1.5 kV
Flammability Rating: UL94 V-0
Insulation Resistance: 1 GOhms
Mating Cycles: 750 Cycle
Mounting Direction: Horizontal
Number of Contacts: 8 Contact
Number of Ports: 1 Port
Number of Positions: 8 Position
Operating Temperature Range: - 40 C to + 85 C
Pitch: 2.54 mm
Product Type: Modular Connectors / Ethernet Connectors

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
