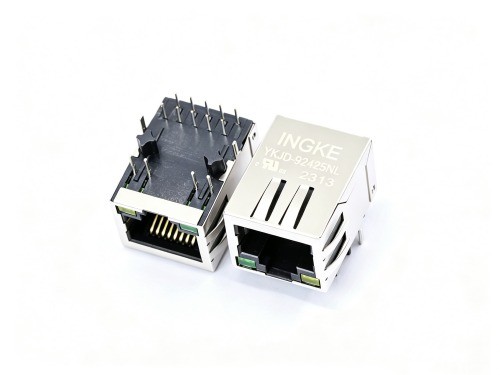

INGKE YKJD-92425NL TMJUTHQ0021192425 Taoglas

INGKE YKJD-92425NL 100% cross TMJUTHQ0021192425 Taoglas

Part No.: TMJUTHQ0021192425 Taoglas

INGKE Part No.: YKJD-92425NL

Made in China: INGKE Technology

Description: TMJUTHQ0021192425 Taoglas 1 Port RJ45 Through Hole 10/100 Base-T, Power over Ethernet (PoE)

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Down

Number of Ports:1
Number of Rows:1

Applications:10/100 Base-T, Power over Ethernet (PoE)
LED Color:Green - Yellow

Number of Cores per Jack:5
Shielding:Shielded, EMI Finger

Height Above Board:0.530" (13.45mm)

Features:Board Guide
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Operating Temperature:-40°C ~ 85°C

Contact Material:Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:6.00µin (0.152µm)
Shield Material:Brass
Housing Material:Polybutylene Terephthalate (PBT)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
