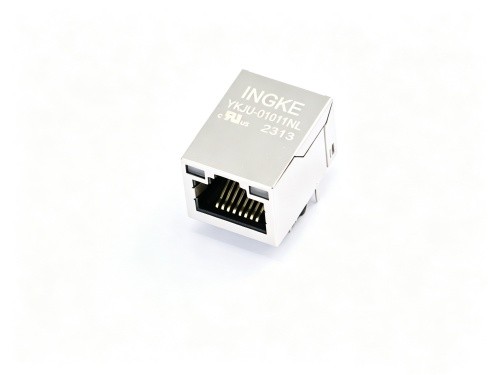

INGKE YKJU-01011NL TMJ1011BBNL Taoglas

INGKE YKJU-01011NL 100% cross TMJ1011BBNL Taoglas

Part No.: TMJ1011BBNL Taoglas

INGKE Part No.: YKJU-01011NL

Made in China: INGKE Technology

Description: TMJ1011BBNL Taoglas 1 Port RJ45 Through Hole 10/100 Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Up

Number of Ports:1
Number of Rows:1

Applications:10/100 Base-T, AutoMDIX
LED Color:Yellow - Green

Number of Cores per Jack:4
Shielding:Unshielded

Height Above Board:0.535" (13.60mm)

Features:Board Lock
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Operating Temperature:-40°C ~ 80°C
Contact Finish:Gold

Shield Material:Stainless Steel

Housing Material:Polybutylene Terephthalate (PBT), Glass Filled

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
