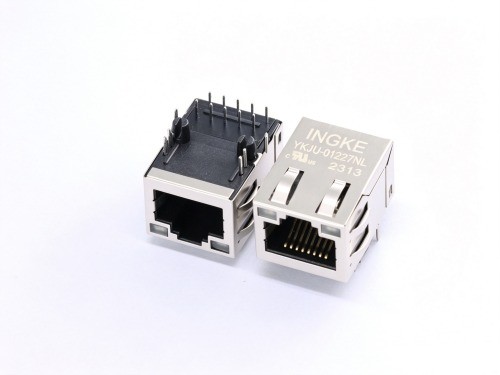

INGKE YKJU-01227NL TMJ0122-7KONL Taoglas

INGKE YKJU-01227NL 100% cross TMJ0122-7KONL Taoglas

Part No.: TMJ0122-7KONL Taoglas

INGKE Part No.: YKJU-01227NL

Made in China: INGKE Technology

Description: TMJ0122-7KONL Taoglas 1 Port RJ45 Through Hole 10/100 Base-TX, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Up

Number of Ports:1
Number of Rows:1

Applications:10/100 Base-T, AutoMDIX
LED Color:Orange, Green - Yellow

Number of Cores per Jack:4
Shielding:Shielded, EMI Finger

Height Above Board:0.531" (13.50mm)

Features:Board Lock
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Operating Temperature:-40°C ~ 85°C
Contact Finish:Gold

Contact Finish Thickness:15.0µin (0.38µm)

Shield Material:Stainless Steel
Housing Material: Polybutylene Terephthalate (PBT), Glass Filled

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
