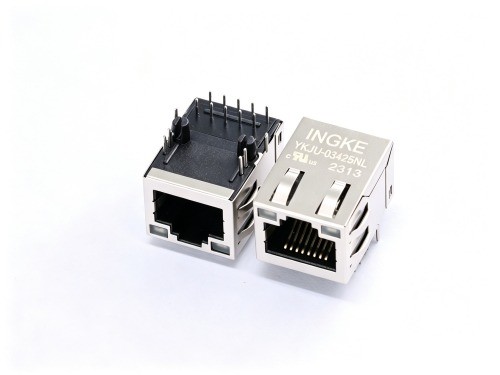

INGKE YKJU-03425NL TMJUTGW0021103425 Taoglas

INGKE YKJU-03425NL 100% cross TMJUTGW0021103425 Taoglas

Part No.: TMJUTGW0021103425 Taoglas

INGKE Part No.: YKJU-03425NL

Made in China: INGKE Technology

Description: TMJUTGW0021102440 Taoglas 1 Port RJ45 Through Hole 10/100 Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Up

Number of Ports:1
Number of Rows:1

Applications:10/100 Base-T, AutoMDIX
LED Color:Green, Orange - Yellow

Number of Cores per Jack:8
Shielding:Shielded, EMI Finger

Height Above Board:0.445" (11.30mm)

Features:Board Guide
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Operating Temperature:-40°C ~ 85°C

Contact Material:Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:15.0µin (0.38µm)
Shield Material:Brass
Housing Material:Liquid Crystal Polymer (LCP)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
