INGKE YKJU-11204NL ARJ11D-MASE-A-B-EMU4 Abracon

INGKE YKJU-11204NL 100% cross ARJ11D-MASE-A-B-EMU4 Abracon

Part No.: ARJ11D-MASE-A-B-EMU4 Abracon

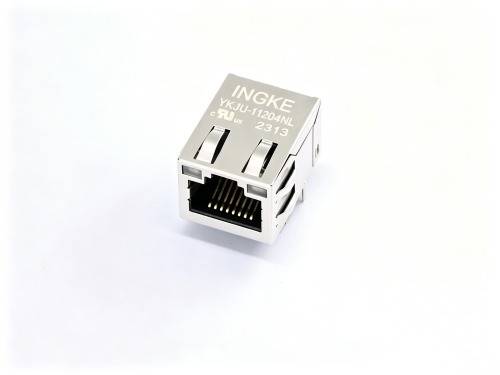

INGKE Part No.: YKJU-11204NL

Made in China: INGKE Technology

Description: ARJ11D-MASE-A-B-EMU4 Abracon 1 Port RJ45 Through Hole 10/100 Base-TX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Up

Number of Ports:1
Number of Rows:1

Applications:10/100 Base-TX

Number of Cores per Jack:8
Shielding:Shielded, EMI Finger

Height Above Board:0.535" (13.60mm)

Features:Board Lock

Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Operating Temperature:0°C ~ 70°C

Contact Finish Thickness:6.00µin (0.152µm)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
