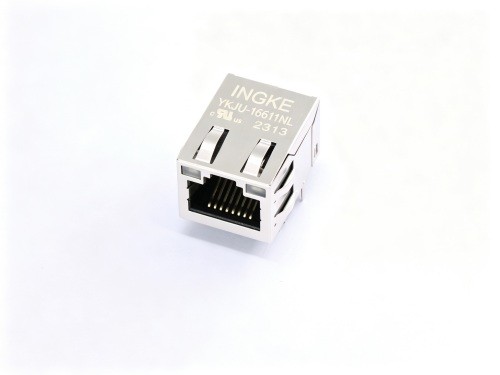

INGKE YKJU-16611NL TMJ16611AENL Taoglas

INGKE YKJU-16611NL 100% cross TMJ16611AENL Taoglas

Part No.: TMJ16611AENL Taoglas

INGKE Part No.: YKJU-16611NL

Made in China: INGKE Technology

Description: TMJ16611AENL Taoglas 1 Port RJ45 Through Hole 10/100 Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Up

Number of Ports:1
Number of Rows:1
Applications:10/100 Base-T, AutoMDIX
LED Color:Green - Yellow
Shielding:Shielded, EMI Finger
Features:Board Lock
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder

Height Above Board:0.530" (13.45mm)

Number of Cores per Jack:4
Operating Temperature:-40°C ~ 85°C
Contact Material: Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:6.00µin (0.152µm)

Housing Material:Polybutylene Terephthalate (PBT), Glass Filled

Shield Material:Stainless Steel

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
