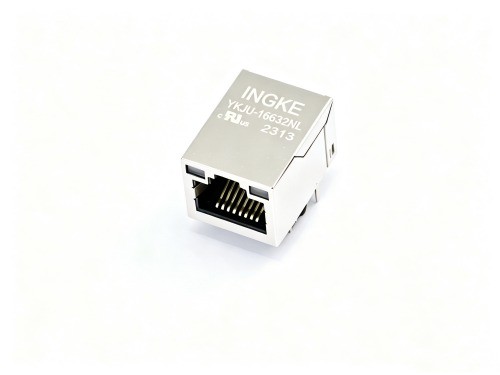

INGKE YKJU-16632NL TMJ166323B10NL Taoglas

INGKE YKJU-16632NL 100% cross TMJ166323B10NL Taoglas

Part No.: TMJ166323B10NL Taoglas

INGKE Part No.: YKJU-16632NL

Made in China: INGKE Technology

Description: TMJ166323B10NL Taoglas 1 Port RJ45 Through Hole 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Up

Number of Ports:1
Number of Rows:1

Applications:10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
LED Color:Yellow - Green

Number of Cores per Jack:4
Shielding:Shielded

Height Above Board:0.535" (13.60mm)

Features:Board Lock
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Operating Temperature:-40°C ~ 80°C
Contact Finish:Gold

Shield Material:Stainless Steel

Contact Finish Thickness:6.00µin (0.152µm)

Housing Material:Polybutylene Terephthalate (PBT), Glass Filled

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
