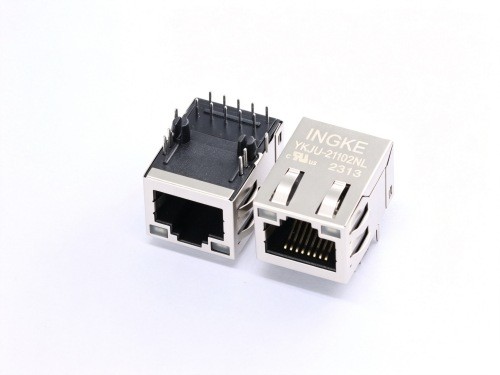

INGKE YKJU-21102NL TMJUCHW0021102420 Taoglas

INGKE YKJU-21102NL 100% cross TMJUCHW0021102420 Taoglas

Part No.: TMJUCHW0021102420 Taoglas

INGKE Part No.: YKJU-21102NL

Made in China: INGKE Technology

Description: TMJUCHW0021102420 Taoglas 1 Port RJ45 Surface Mount 10/100 Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Up

Number of Ports:1
Number of Rows:1

Applications:10/100 Base-T, AutoMDIX
LED Color:Green, Yellow

Number of Cores per Jack:4
Shielding:Shielded, EMI Finger

Height Above Board:0.531" (13.50mm)

Features:Board Guide
Mounting Type:Surface Mount
Orientation:90° Angle (Right)
Termination:Solder
Operating Temperature:-40°C ~ 85°C

Contact Material:Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:6.00µin (0.152µm)
Shield Material:Brass
Housing Material:Liquid Crystal Polymer (LCP)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
