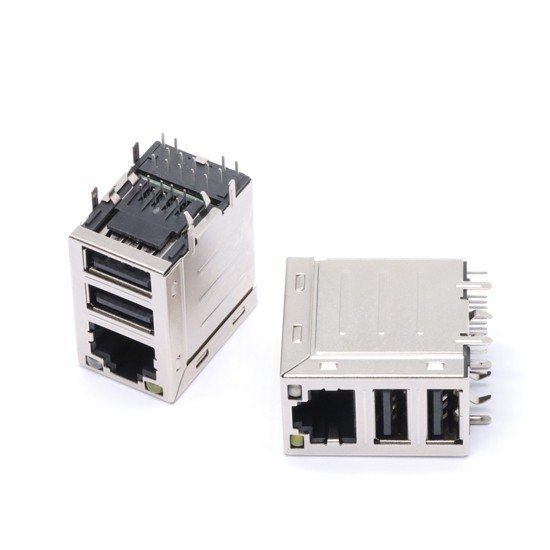

INGKE YKJU-23102NL RJMG2310228A0ER Amphenol

INGKE YKJU-23102NL 100% cross RJMG2310228A0ER Amphenol

Part No.: RJMG2310228A0ER Amphenol

INGKE Part No.: YKJU-23102NL

Made in China: INGKE Technology

Description: RJMG2310228A0ER Amphenol 1 Port RJ45 with USB A, Dual Through Hole 10/100/1000 Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45 with USB A, Dual
Applications:10/100/1000 Base-T, AutoMDIX

Latch: Up

LED:Yellow - Green, Orange

Orientation:90° Angle (Right)
Termination:Solder
Height Above Board:1.168" (29.67mm)
Mounting Type:Through Hole

Shielding:Unshielded

Temperature: -45°C ~ 85°C

Contact Material: Phosphor Bronze

Contact Finish:Gold

Contact Finish Thickness:30.0µin (0.76µm)

Shield Material:Stainless Steel

Housing Material: Thermoplastic

Categories: Connector, Interconnect, Modular Connector, Modular/Ethernet Connector Jacks

MSL: 1 (Unlimited)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
