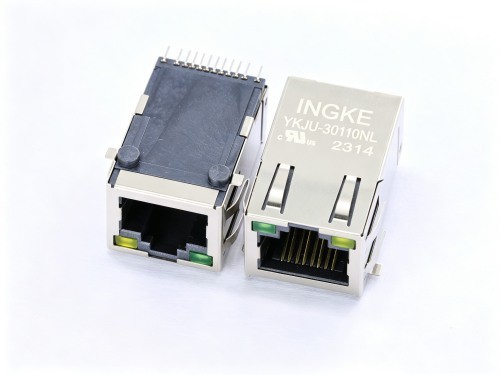

INGKE YKJU-30110NL TMJ3011ABNL Taoglas

INGKE YKJU-30110NL100% cross TMJ3011ABNL Taoglas

Part No.: TMJ3011ABNL Taoglas

INGKE Part No.: YKJU-30110NL

Made in China: INGKE Technology

Description: TMJ3011ABNL Taoglas 1 Port RJ45 Surface Mount 10/100 Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Number of Ports:1
Number of Rows:1

Applications:10/100 Base-T, AutoMDIX
Tab Direction:Up
Features:Board Guide
LED:Green - Yellow

Orientation:90° Angle (Right)
Termination:Solder
Mounting Type:Surface Mount

Shielding:Shielded, EMI Finger

Temperature:-40°C ~ 80°C

Contact Material: Phosphor Bronze

Contact Finish:Gold

Contact Finish Thickness:6.00µin (0.152µm)

Height Above Board:0.546" (13.87mm)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
