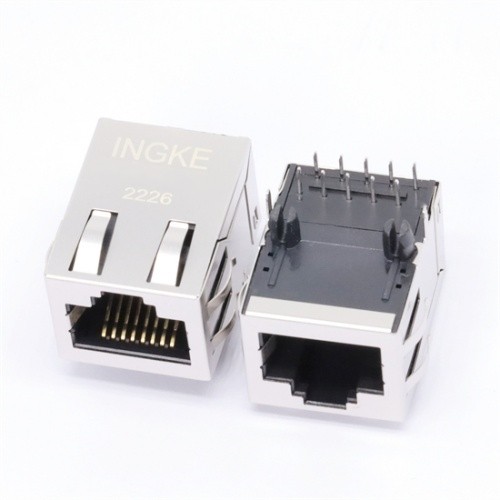

YKJU-51023NL CRJ005-M1-TH Same Sky

INGKE YKJU-51023NL 100% cross CRJ005-M1-TH Same Sky

Part No.: CRJ005-M1-TH Same Sky

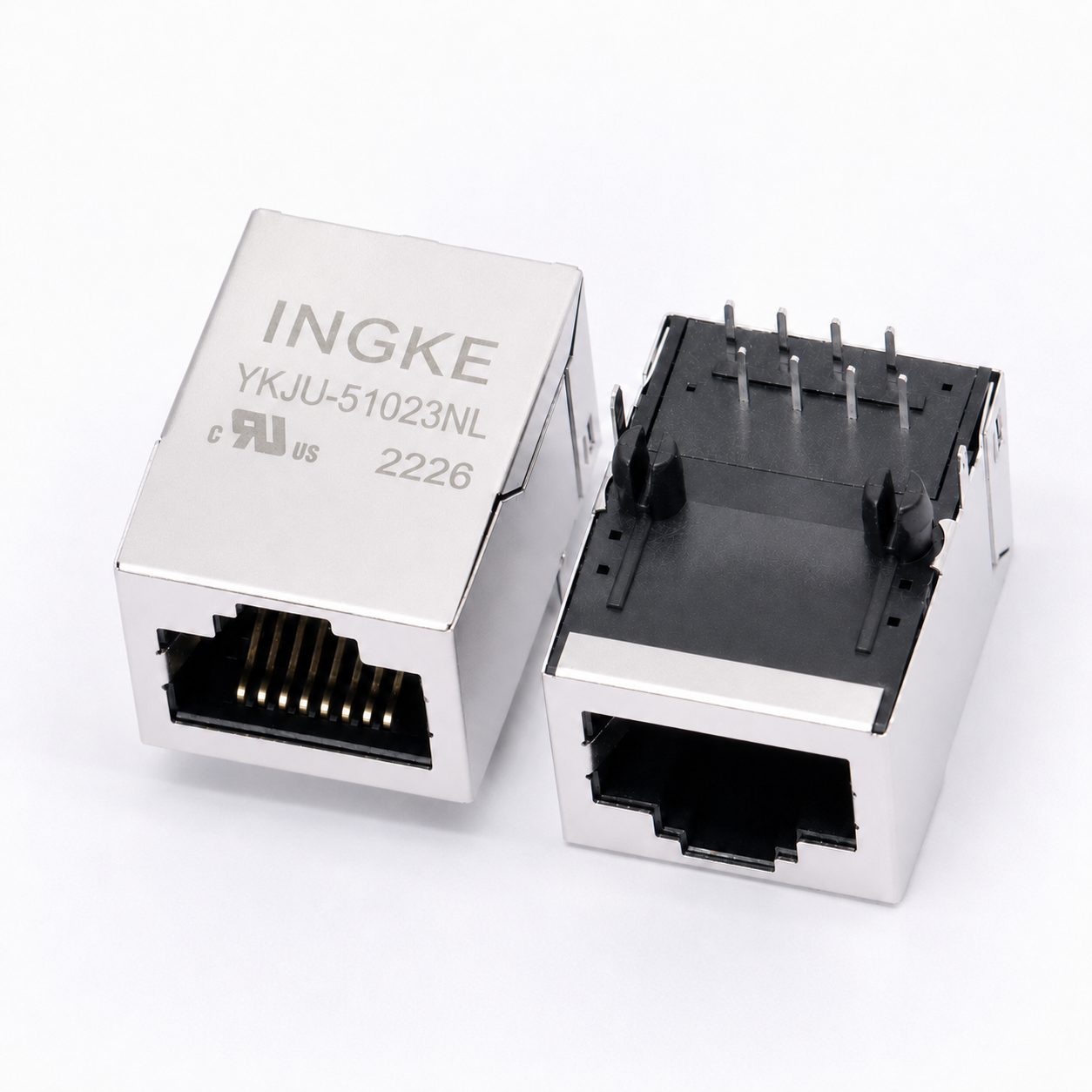

INGKE Part No.: YKJU-51023NL
Made in China: INGKE Technology
Description: CRJ005-M1-TH Same Sky 1 port, 8P10C, 6u, shielded, no LED, magnetic
MOQ: 1PCS
Lead Time: 1-2 Weeks

 Gender: Jack (Female)
 USOC Codes: RJ45
 Configuration: 1x1
 Number of Positions / Contacts per Port: 8P10C
 Shielding: Shielded
 Performance Category: Cat 5
 Mounting Style: Through Hole
 Mounting Angle: Right Angle
 Termination Style: Solder
 Current Rating: 1.5 A
 Voltage Rating: 150 VAC
 Minimum Operating Temperature: 0 C
 Maximum Operating Temperature: + 70 C
 Color: Black
 Tab Direction: Tab Up
 Application: 10/100 Base-T PoE
 Contact Material: Phosphor Bronze
 Contact Plating: Gold
 Country of Assembly: Not Available
 Country of Diffusion: Not Available
 Flammability Rating: UL 94 V-0
 Insulation Resistance: 500 MOhms
 Mounting Direction: Horizontal
 Number of Contacts: 10 Contact
 Number of Ports: 1 Port
 Number of Positions: 8 Position
 Product Type: Modular Connectors / Ethernet Connectors
 Lead Free, RoHS Compliant
 INGKE UL No.: E530462

 100% compatible, 100% test,  warranty for 60 months
 Factory with UL, supplier of Marvell & Honeywell
