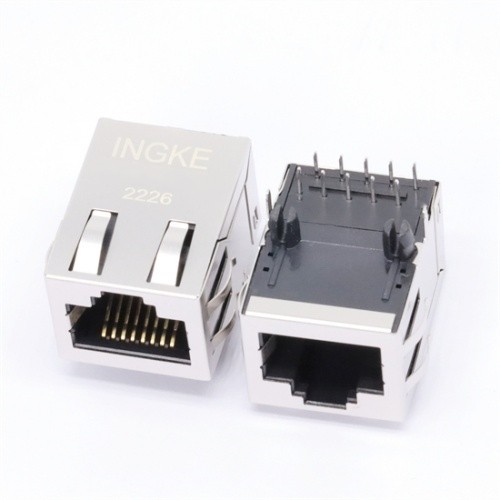

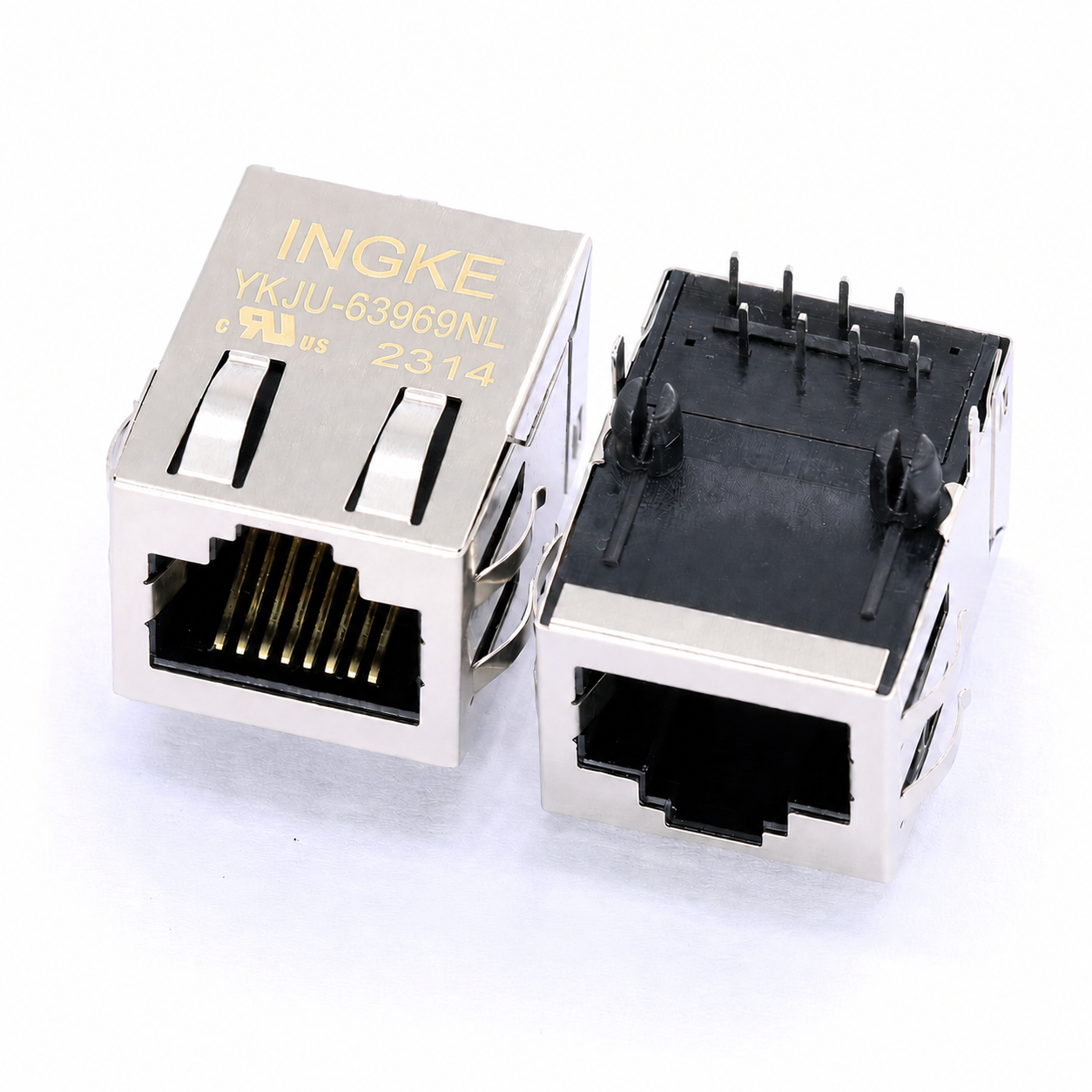

INGKE YKJU-63969NL 1663969 Phoenix

INGKE YKJU-63969NL 100% cross 1663969 Phoenix

Part No.: 1663969 Phoenix

INGKE Part No.: YKJU-63969NL

Made in China: INGKE Technology

Description: 1663969 Phoenix CUC-IB4M-J1ST-AT/R4T-P

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 1x8
Number of Positions / Contacts per Port: 8P / 8C
Shielding: Shielding
Mounting Style: PCB Mount
Mounting Angle: Right Angle
Termination Style: Through Hole
IP Rating: IP20
Current Rating: 500 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Contact Material: Phosphor Bronze
Contact Plating: Gold
Flammability Rating: UL 94 V-0
Insulation Resistance: 500 MOhms
Mating Cycles: 750 Cycle
Mounting Direction: Right Angle
Number of Contacts: 8 Contact
Number of Ports: 1 Port
Number of Positions: 8 Position
Operating Temperature Range: - 40 C to + 85 C
Product Type: Modular Connectors / Ethernet Connectors

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
