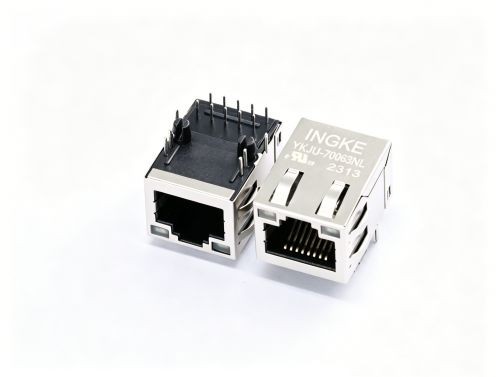

INGKE YKJU-70063NL JXD7-0V06NL Pulse

INGKE YKJU-70063NL 100% cross JXD7-0V06NL Pulse

Part No.: JXD7-0V06NL Pulse

INGKE Part No.: YKJU-70063NL

Made in China: INGKE Technology

Description: JXD7-0V06NL 1 Port RJ45 Through Hole 10/100 Base-TX, AutoMDIX

MOQ: 1PCS
Lead Time: 1-2 Weeks

Part Status:Active
Connector Type:RJ45
Number of Ports:1
Number of Rows:1
Applications:10/100 Base-TX, AutoMDIX
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Height Above Board:0.531" (13.49mm)
LED Color:Yellow - Green
Number of Cores per Jack:4
Shielding:Shielded
Features:Board Guide
Tab Direction:Up
Contact Material:Phosphor Bronze
Contact Finish:Gold
Operating Temperature:-40°C ~ 85°C
Contact Finish Thickness:30.0µin (0.76µm)

Shield Material:Stainless Steel
Housing Material:Thermoplastic

Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
