INGKE YKJU-88244NL RJE36188244D Amphenol

INGKE YKJU-88244NL 100% cross RJE36188244D Amphenol

Part No.: RJE36188244D Amphenol

INGKE Part No.: YKJU-88244NL

Made in China: INGKE Technology

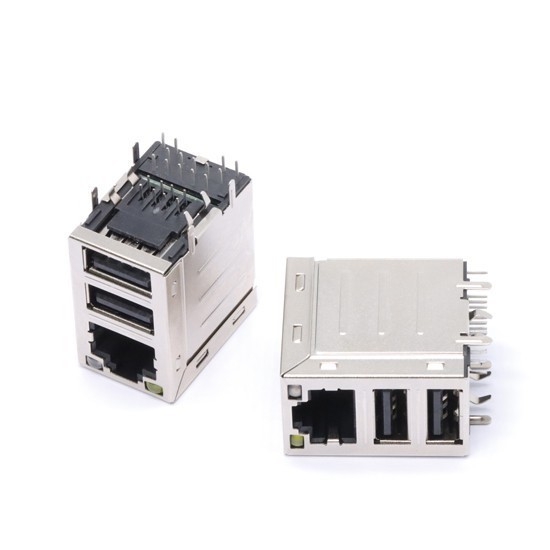

Description: RJE36188244D Amphenol RJ45 over USB4 , with LED

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 1x1
Number of Positions / Contacts per Port: 8P8C
Shielding: Shielded
Mounting Style: Through Hole
Mounting Angle: Right Angle
Termination Style: Solder
Current Rating: 1.5 A
Voltage Rating: 125 VAC
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Color: Black
LED L / R Color: Green / Yellow
Tab Direction: Tab Up
Contact Material: Phosphor Bronze
Contact Plating: Gold
Flammability Rating: UL94 V-0
Number of Contacts: 8 Contact
Number of Ports: 1 Port (RJ45), 1 Port (USB)
Number of Positions: 8 Position
Operating Temperature Range: - 40 C to + 85 C

Product Type: Modular Connectors / Ethernet Connectors

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
