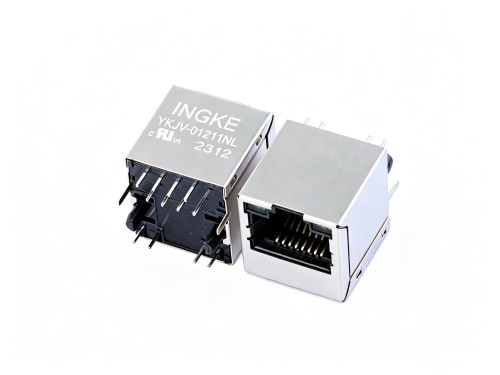

INGKE YKJV-01211NL TMJUVHW0121102440 Taoglas

INGKE YKJV-01211NL 100% cross TMJUVHW0121102440 Taoglas

Part No.: TMJUVHW0121102440 Taoglas

INGKE Part No.: YKJV-01211NL

Made in China: INGKE Technology

Description: TMJUVHW0121102440 Taoglas 1 Port RJ45 Through Hole 10/100 Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:User Selectable

Number of Ports:1
Number of Rows:1

Applications:10/100 Base-T, AutoMDIX
LED Color:Green - Yellow

Number of Cores per Jack:4
Shielding:Shielded, EMI Finger

Height Above Board:0.663" (16.85mm)

Features:Board Lock
Mounting Type:Through Hole
Orientation:Vertical
Termination:Solder
Operating Temperature:-40°C ~ 85°C

Contact Material:Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:30.0µin (0.76µm)
Shield Material:Brass
Housing Material:Polybutylene Terephthalate (PBT)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
