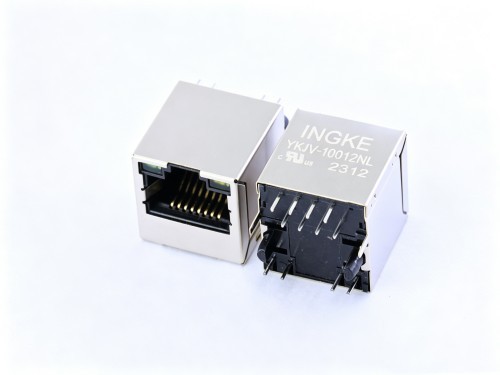

INGKE YKJV-10012NL TMJD0012BENL Taoglas

INGKE YKJV-10012NL 100% cross TMJD0012BENL Taoglas

Part No.: TMJD0012BENL Taoglas

INGKE Part No.: YKJV-10012NL

Made in China: INGKE Technology

Description: TMJD0012BENL Taoglas 1 Port RJ45 Through Hole 10/100 Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:User Selectable

Number of Ports:1
Number of Rows:1

Applications:10/100 Base-T, AutoMDIX
LED Color:Yellow - Green

Number of Cores per Jack:4
Shielding:Unshielded

Height Above Board:0.657" (16.70mm)

Features:Board Guide
Mounting Type:Through Hole
Orientation:Vertical
Termination:Solder
Operating Temperature:0°C ~ 70°C
Contact Finish:Gold

Contact Finish Thickness:6.00µin (0.152µm)

Shield Material:Nickel
Housing Material:Thermoplastic

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
