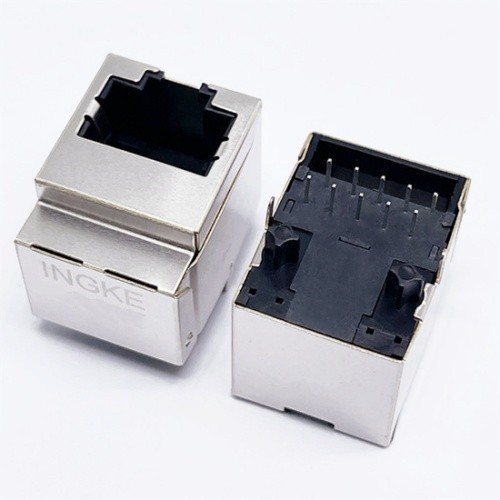

INGKE YKJV-5288006NL E5288-006-02-L Pulse

INGKE YKJV-5288006NL 100% cross E5288-006-02-L Pulse

Part No.: E5288-006-02-L Pulse

INGKE Part No.: YKJV-5288006NL

Made in China: INGKE Technology

Description: E5288-006-02-L Pulse 1X1 8P8C TOP ENTRY SMT

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 1x1
Number of Positions / Contacts per Port: 8P8C
Shielding: Unshielded
Performance Category: Cat 3
Mounting Style: PCB Mount
Mounting Angle: Vertical
Termination Style: SMD/SMT
Current Rating: 1.5 A
Voltage Rating: 125 VAC
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Color: Black
Tab Direction: Top Entry
Application: 10 Base-T
Contact Material: Phosphor Bronze
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Flammability Rating: UL 94 V-0
Insulation Resistance: 1 GOhms
Mating Cycles: 750 Cycles
Mounting Type: SMD/SMT
Number of Contacts: 8 Contact
Number of Ports: 1 Port
Number of Positions: 8 Position
Product Type: Modular Connectors / Ethernet Connectors
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
